What are Key Features?

SDS All.Flash Series is designed to support high-performance and always-on data reduction.
Eternal Storage

Preconfigured Triple Parity RAID. Global Hot Spare drive included. Integrity and Resilience without compromises.

Always-On Data Reduction

Inline Compression + Dedupe. Online capacity expansion. Thin and Thick provisioning. You will no longer have to save space.

Maximum Performance

NVMe solid-state performance on data storage. Sub-millisecond response time for performance-sensitive enterprise workloads.

Modern Management Tools

Powerful web-based console to simplyfy control and monitoring operations. Certified workload profiles for an easy configuration.

drive02

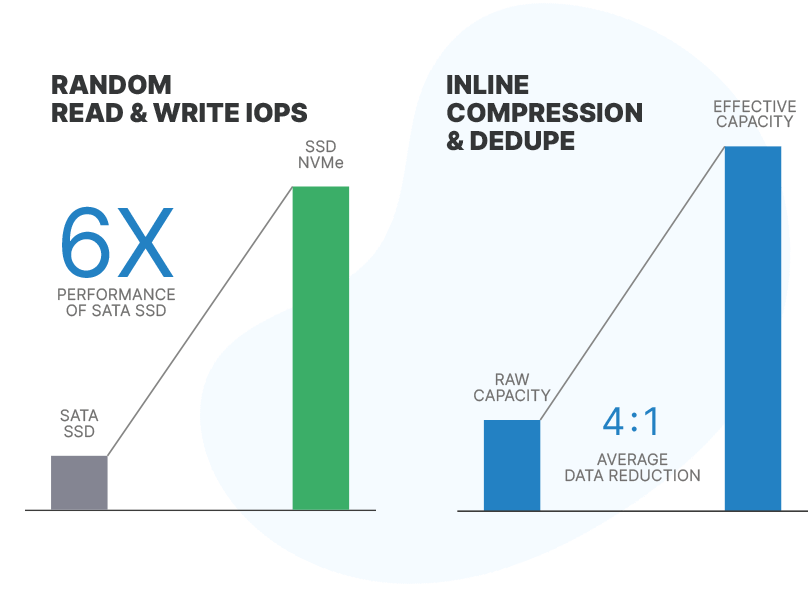

Maximum performances and Inline data-reduction

SDS All-Flash storage helps eliminate data center storage bottlenecks and allows bigger and more affordable data sets. It can accelerate applications and improve overall data center TCO.
  • NVMe-only Flash array
  • Up to 3.84M IOPS
  • Inline Compression + Deduplication
  • Intel Xeon Scalable Processors acceleration
  • 10 GbE up to 100 GbE

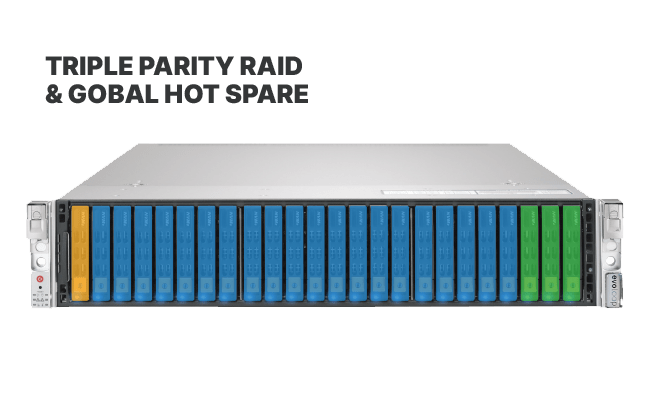

No compromises for data integrity and resilience

Thanks to Triple Parity RAID our solution tolerates three simultaneous drive failures. Moreover, a Global Hot Spare drive adds additional data-loss protection.
  • Triple Parity RAID
  • Global Hot Spare
  • Hot swappable drives
  • Bad block scan + HDD S.M.A.R.T.
  • Enclosure monitoring and alert LEDs

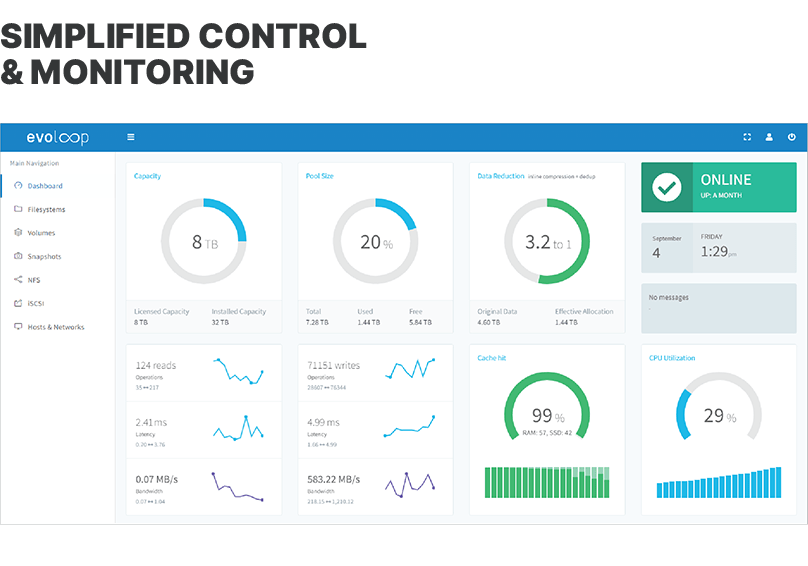

Simplify IT monitoring and control from your browser

Evoloop SDS storage comes with a powerful HTML5-based dashboard that allows quick configurations to authorized persons directly without any installation. Included tips and safety locks to prevent accidental damage.
  • HTML5 dashboard
  • Real time data visualization
  • Easy configuration
  • Performance counters
  • Preconfigured Workload Profiles

Technical Specifications

Three models to embrace all your needs.

160TB

max**

F2020

  • Rack Space

    2U

  • Redundant Power Supplies

    Yes

  • CPU

    2x Intel Xeon Scalable 2nd gen.

  • RAM

    256 GB

  • Network

    4x 10 GbE RJ45

  • Network (option)

    25 GbE - 40 GbE - 100 GbE

  • NVMe SSD

    24x 2 TB U.2 PCIe

  • Storage License

    min 10 TB max 40 TB

  • Average Data Reduction**

    4:1

  • Average Effective Capacity

    min 40 TB max 160 TB

  • Performance

    Up to 3,840,000 IOPS. Based on specific workload.

  • Triple Parity RAID

    Yes

  • All-Inclusive Feature Licensing

    Included

320TB

max**

F2040

  • Rack Space

    2U

  • Redundant Power Supplies

    Yes

  • CPU

    2x Intel Xeon Scalable 2nd gen.

  • RAM

    384 GB

  • Network

    4x 10 GbE RJ45

  • Network (option)

    25 GbE - 40 GbE - 100 GbE

  • NVMe SSD

    24x 4 TB U.2 PCIe

  • Storage License

    min 20 TB max 80 TB

  • Average Data Reduction**

    4:1

  • Average Effective Capacity

    min 80 TB max 320 TB

  • Performance

    Up to 3,840,000 IOPS. Based on specific workload.

  • Triple Parity RAID

    Yes

  • All-Inclusive Feature Licensing

    Included

640TB

max**

F2080

  • Rack Space

    2U

  • Redundant Power Supplies

    Yes

  • CPU

    2x Intel Xeon Scalable 2nd gen.

  • RAM

    512 GB

  • Network

    4x 10 GbE RJ45

  • Network (option)

    25 GbE - 40 GbE - 100 GbE

  • NVMe SSD

    24x 8 TB U.2 PCIe

  • Storage License

    min 40 TB max 160 TB

  • Average Data Reduction**

    4:1

  • Average Effective Capacity

    min 160 TB max 640 TB

  • Performance

    Up to 3,840,000 IOPS. Based on specific workload.

  • Triple Parity RAID

    Yes

  • All-Inclusive Feature Licensing

    Included

  1. All capacities are expressed in Base 10: 1 MB = 1,000,000 bytes.
  2. Average data reduction ratios are based on capacity savings from data deduplication and data compression.
    Actual data reduction ratios can vary and depend on individual environments and data structures.
